2017 Belovac Thermoformer
2010 - 2019 | Thermoforming | Used | Used Thermoforming
General Information

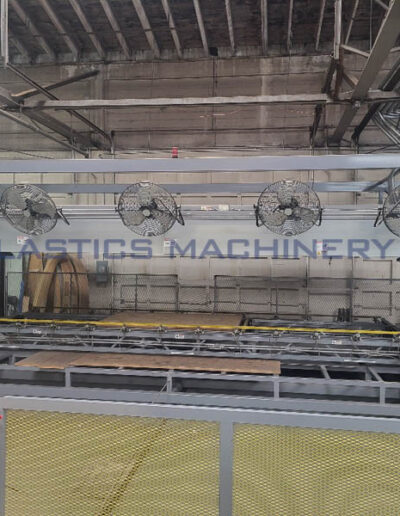

- 2017 Belovac Thermoformer Vacuum Former
- Custom BV E Class Rolling table carriage vacuum forming machine
- Size 8′.10″ x 16′.10″
- Depth of draw or tooling clearance – 18″
- Plastic Clamping: adjustable front and back pneumatic material clamp frame, adjustable side to side removable cross bars for depth, featuring quick set up, manual clamps
- Tooling table: rolling tooling table
- Timing: Siemans PLC programmable heat time duration
- Heaters: Upper inferred heat stationary
- Vacuum system free standing: 200-gallon surge tank, large bush rotary vein vacuum
- Construction: Heavy wall 4″ and 6″ tubing
- Power: 240V – 3Phase
- Machine: 120″W x 290″L x 72″H
- Very light use
