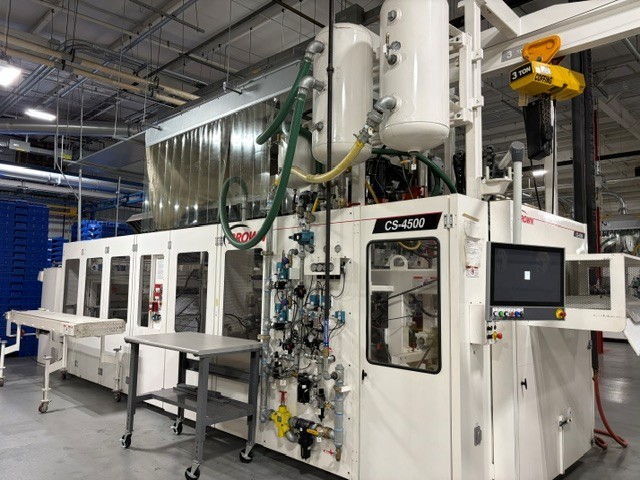

2023 Brown CS4500 with Lyle 140PV Trim Press

• 40”x42” Max Mold Size
• Sheet Size: 30” Min, 43” Max
• 84 Ton Forming Pressure
• Max Opening Dimension: 24.81” Top, 19.81” Bottom
• Max Closed Dimension: 15.06” Top, 10.06” Bottom
• Electronic Shut Height Adjust
• Stroke- 9.75” top and Botton
• Quartz Heat

Lyle 140 PV Vertical Trim Press

• Stationary Window: 13.5”x 40.5” Wide
• Moving Platen Stroke- 5”
• Up to 125 Strokes per Minute
