Complete 8” US Extruders Underwater Pelletizing Line
Pelletizing Lines
General Information
- NBE Material Handling System
-Bolted Silos (4) 4 -Silo Install for Qty Four (4) Silos by NBE 1 -PowerMaxx Container Discharger 3 -Portable Surge Bin 22-403SP-PSB 1 -Surge Bin 32-2SP-SB (approx. 2,000 lb. capacity) with FSC 1 -Surge Bin 32-2SP-SB (approx. 2,000 lb. capacity) with FSC 1 -Surge Bin 32-2SP-SB (approx. 2,000 lb. capacity) 3 -Bulk Bag Discharger with Airbox 1 -Surge Bin 32-20SP-SB (approx. 20,000 lb. capacity) 2 -Metal Separator with Controls 1 -Jumbo Whirlwind Mixer with Airbox 1 -Floor Level Container Tilter 2 Blending System (Novatec)
– WSB-3050 Blender
– Vacuum Conveying Equipment to load WSB-3050 Blender
– Vacuum Conveying Equipment from Extruder Discharge to two (2) Surge Bin
– Vacuum Conveying Equipment to Whirlwind Mixer and Four Silos
– Engineering Services, Start-up and Training
– Common Line Y Option
Extruder

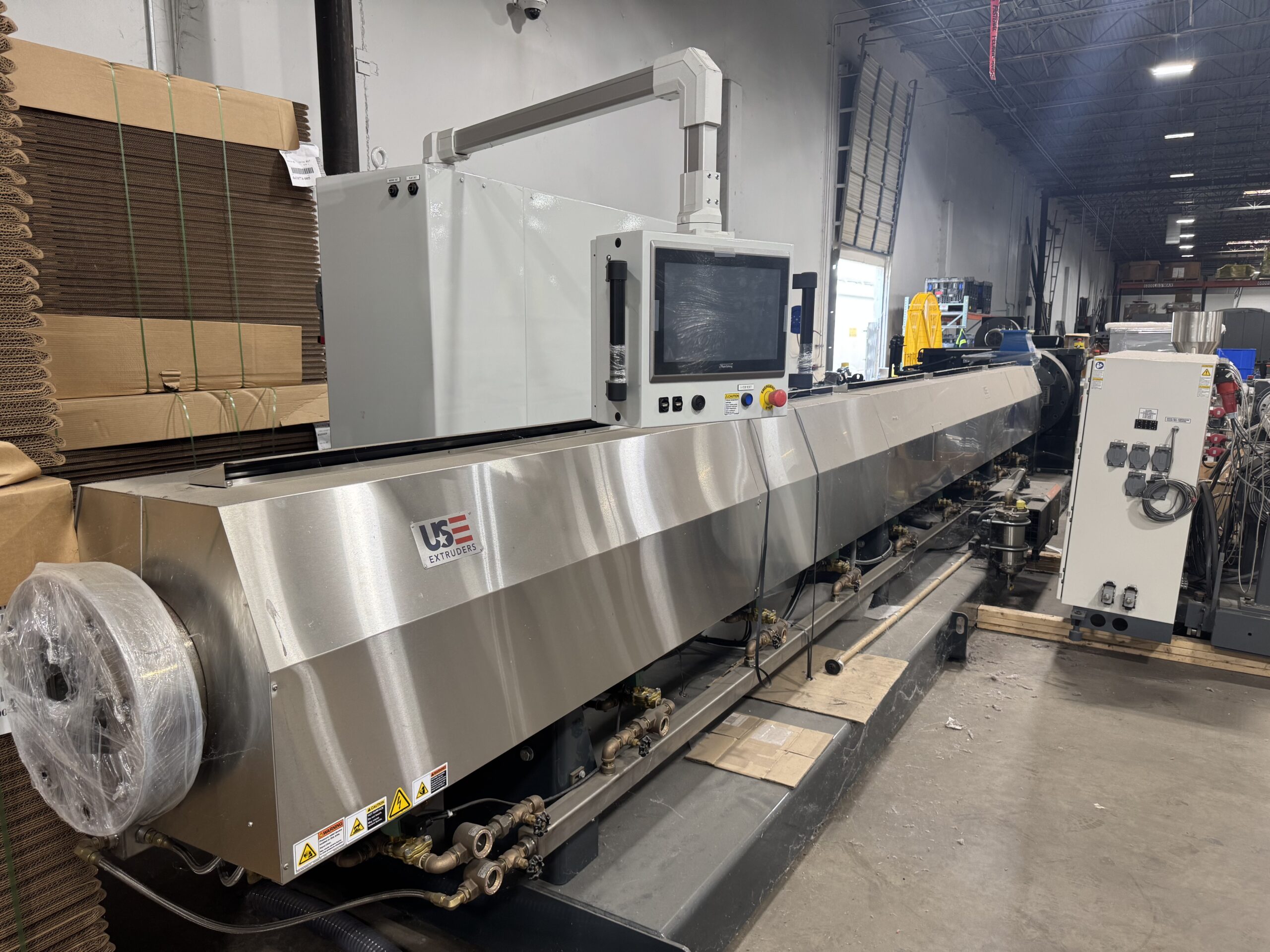

-US Extruders 8” Extruder, 42:1 L/D, 1000HP Zambello Gearbox 22.5:1 Gear Ratio
-High Performance 2 Stage Barrier Screw.
MAAG Pelletizing System
-Adapters from Extruder to screen changer and screen changer to pelletizer
-FSC-300 Screen Changer W/ Cart and HPU
-Underwater Pelletizer- SLC-7 (Spring Loaded)
-Tempered Water System Model TWS -200
-Centrifugal Pellet Dryer Model eXso 320
-PLC Control Panel
-Spare Die Plate Insert
