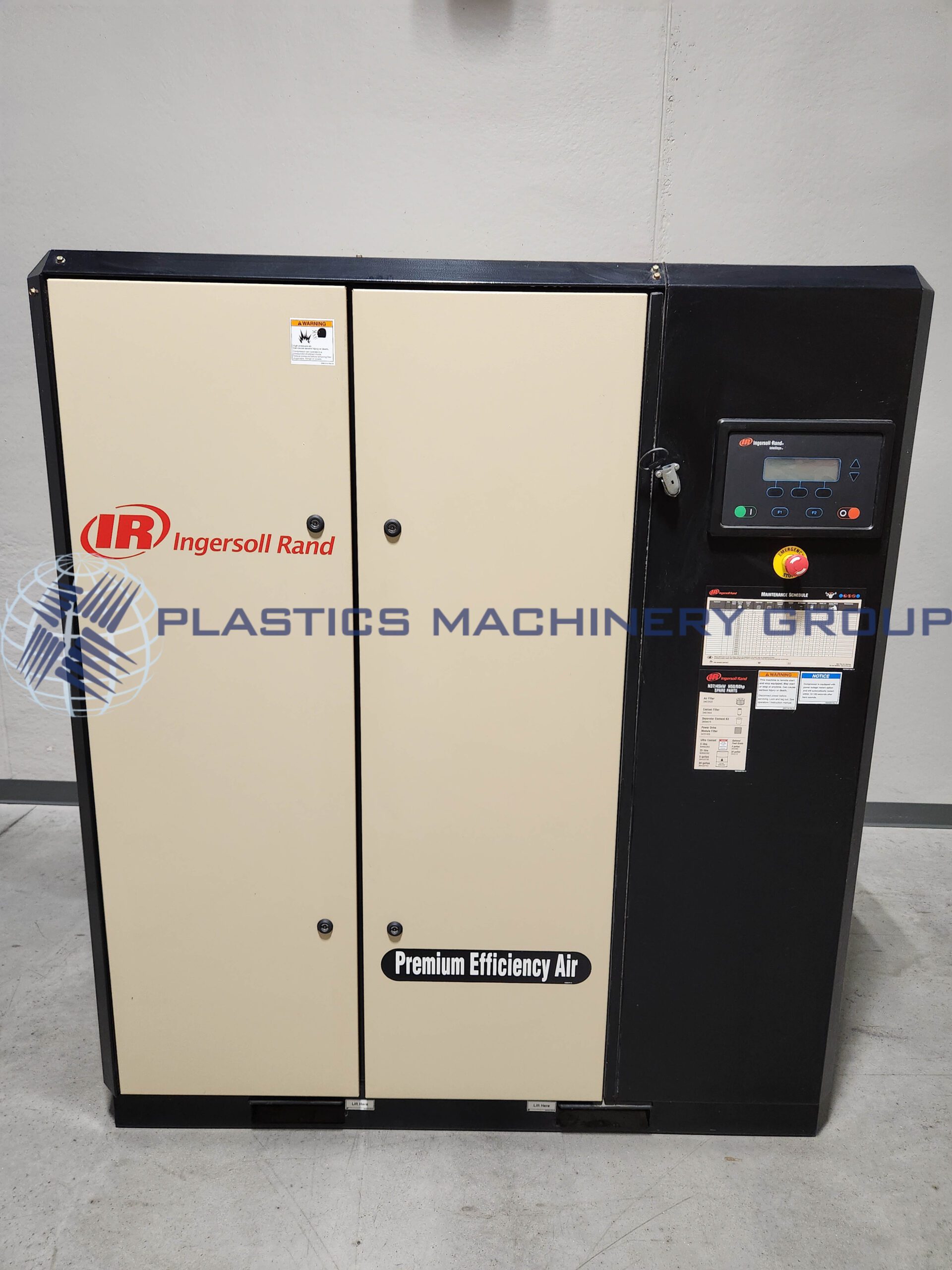

Ingersoll-Rand IRN60H-CC:

Rotary Screw Compressor

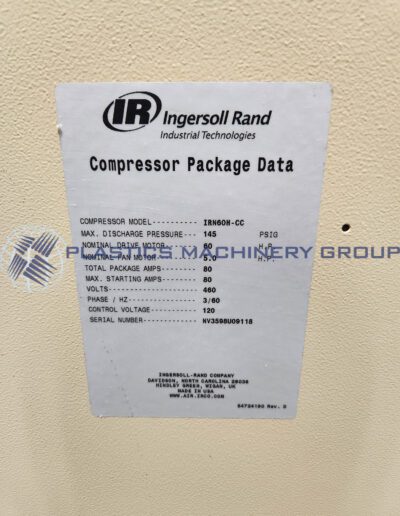

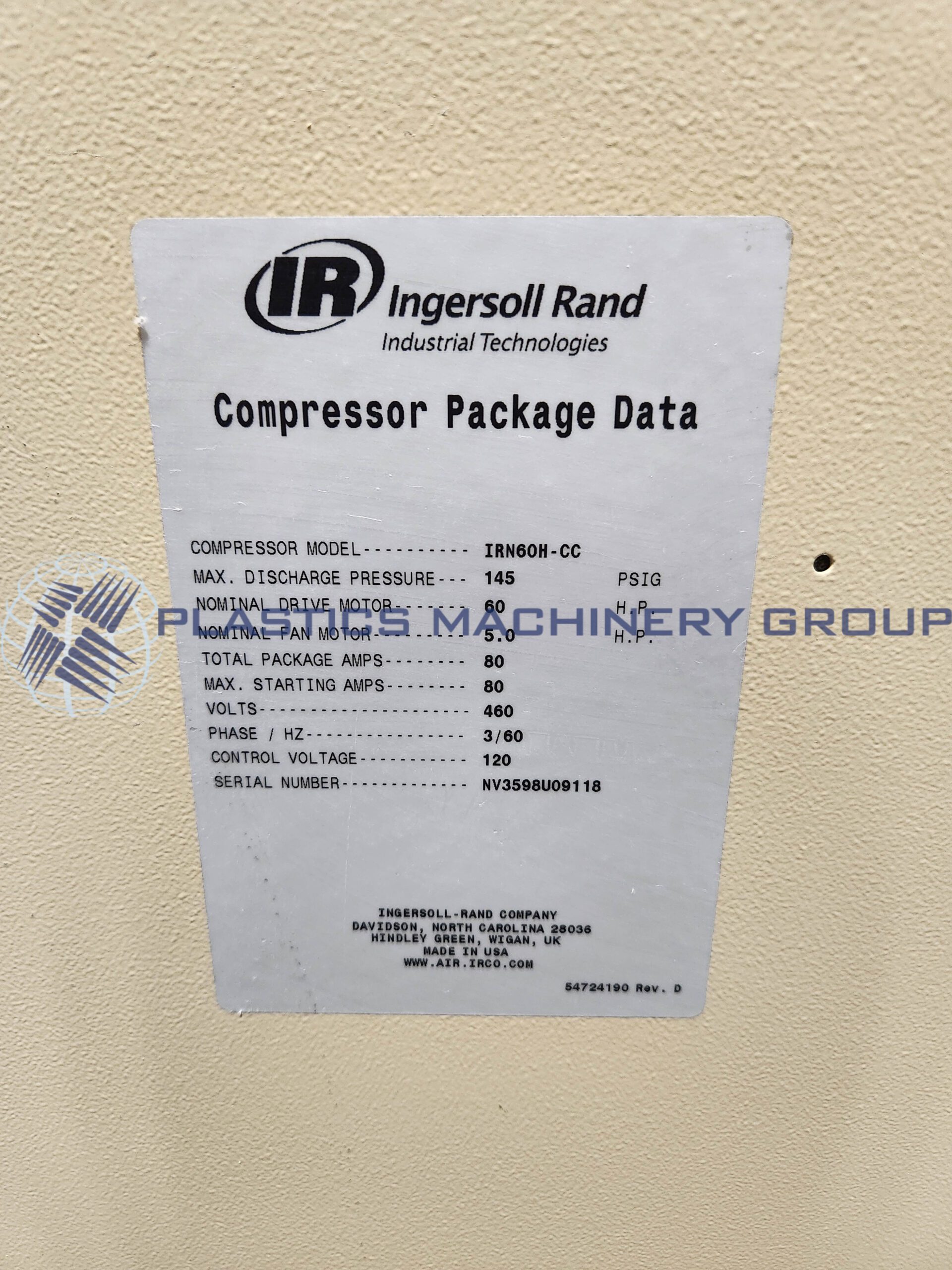

Compressor Model: IRN60H-CC

Maximum Discharge Pressure: 145 PSIG

Nominal Drive Motor Power: 60 HP

Nominal Fan Motor Power: 5 HP

Total Package Amps: 80 Amps

Maximum Starting Amps: 80 Amps

Voltage: 460V

Phase/Frequency: 3-phase, 60 Hz

Control Voltage: 120V

Flow Capacity:

Flow at 100 psig (cfm) – 262

Flow at 125 psig (cfm) – 246

Flow at 140 psig (cfm) – 236

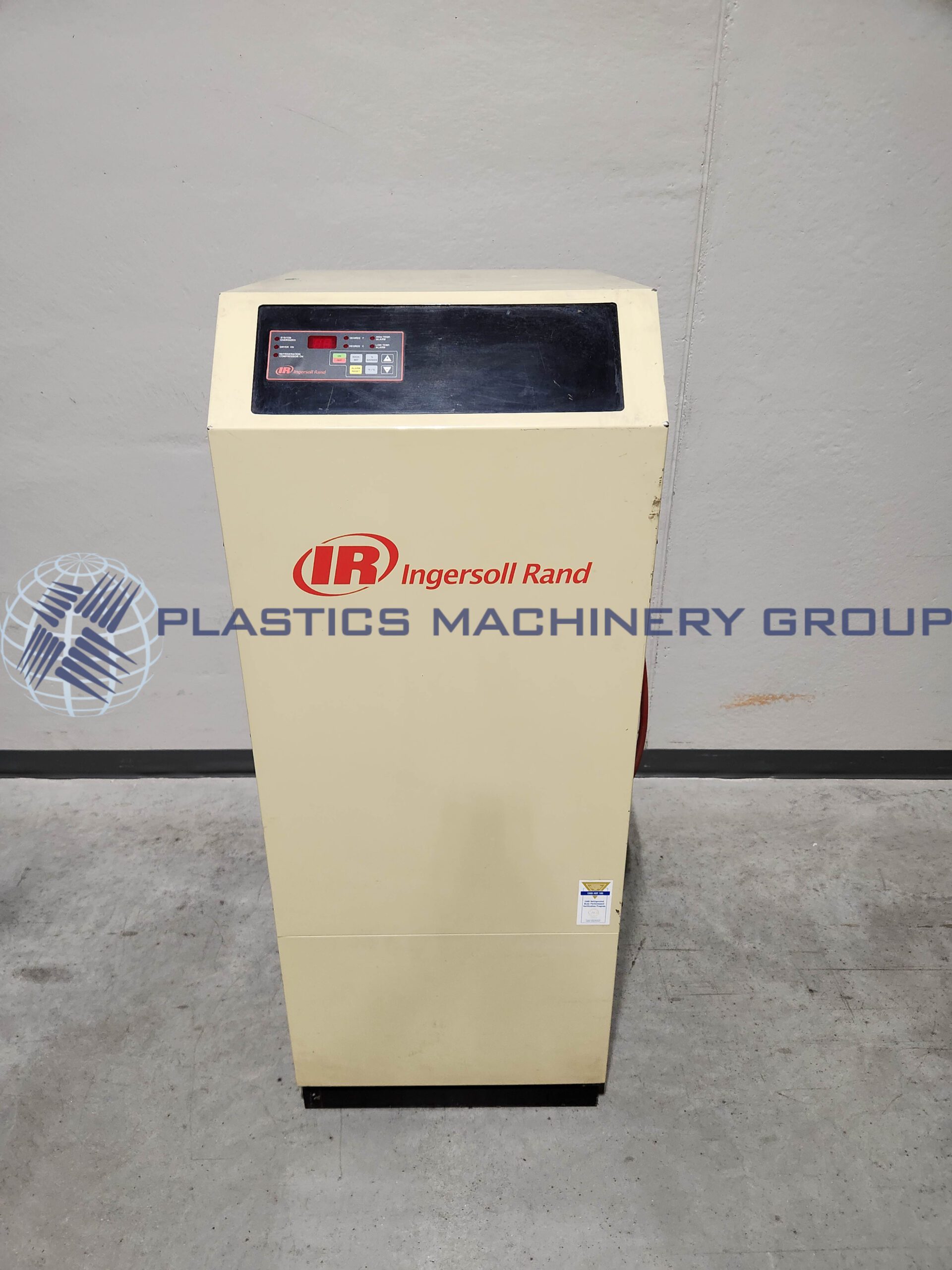

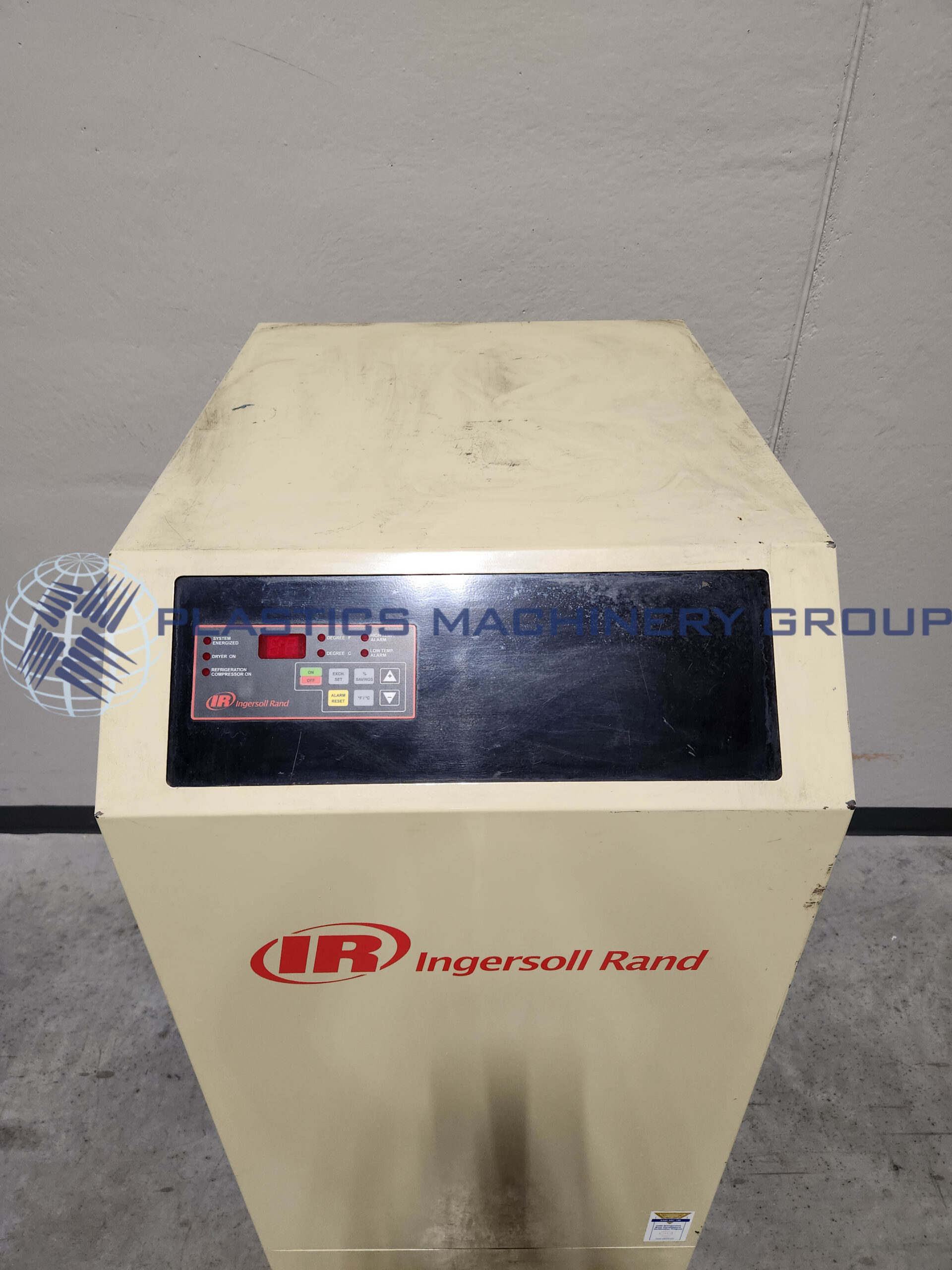

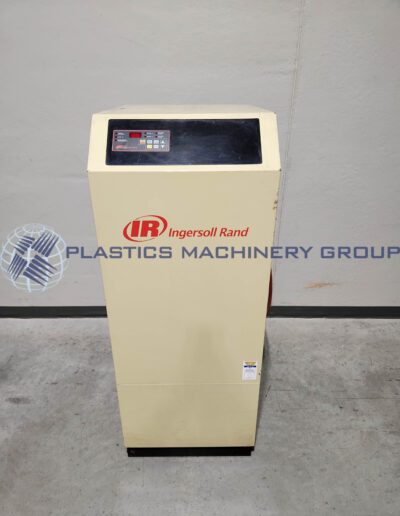

Air Dryer Unit:

Ingersoll-Rand Model: NVC400A500

Refrigerant: R404A

Refrigerant Quantity: 4 lbs (1.814 kg)

Nominal SCFM (Flow Capacity): 200-400

Maximum Pressure: 230 PSIG

Voltage: 230V

Frequency/Phase: 60 Hz, 3-phase

Compressor Motor Power: 2.5 HP

Fan Motor Power: 1/6 HP

Compressor RLA (Running Load Amps): 11.4 Amps

Compressor LRA (Locked Rotor Amps): 57 Amps

Fan RLA: 1 Amps

Fan LRA: 3 Amps

Maximum Fuse Size: 25 A

Minimum Circuit Ampacity: 15.9 Amps

Owner’s manual for dryer unit included.

1 Owner of Air Compressor and Dryer previously. Purchased new in 2009. In service for 3 full years. Then cycled on and off for 6 years. Then reserved as a backup air compressor for 6 years.
